Mapei  |  SKU: 3221301

Mapei Mapeheat Underfloor Heating Mesh 160

£85.76
inc VAT
£71.47 ex VAT
£86.30


MAPEI Minimum Order Notice!
This product is dispatched directly from our supplier, a minimum order of £120 ex VAT is required.

Uses

Recommended For:
Providing comfort heating in bathrooms, kitchens, entryways, and other interior living areas.
Installation in wet areas such as showers and steam rooms.
Installation beneath approved flooring types as specified in the Technical Data Sheet.
Interior applications in residential and commercial settings.
Providing comfort heating in various indoor spaces such as bathrooms, kitchens, and living areas.

Not Recommended For:
Installation beneath carpet, linoleum, solid hardwood, rubber, or parquet flooring.
Exterior applications.
Installation in, on, or under walls, or inside closets.
Use of sharp or power tools to clean grout lines.
Overlapping, crossing, cutting, shortening, or modifying the heating wire.
Using the sheath of the device as a grounding conductor; it must be bonded to the ground.
Exceeding a total combined R-value of all floor covering layers over Mapeheat Mesh of R-1.5.
Covering expansion joints or using over cracks or movement joints subject to out-of-plane movement, or where in-plane movement exceeds 3 mm.
Use over substrates containing asbestos, plank wood flooring, presswood, particleboard, chipboard, pressure- or oil-treated plywood, Lauan, Masonite, self-stick tile, laminate, metal, fiberglass, or similar dimensionally unstable materials.
Submerged applications or floors subject to standing water.
Use on bituminous substrates.
Use on highly flammable material.

Delivery and Shipping

MAPEI Delivery Costs:

Standard Delivery (within 72 hours):
• Charged at £20 ex VAT per pallet
• Carriage is paid if product value meets £500 ex VAT or 1 full pallet of the same product
• Orders must be received by 2:00pm


Next Day Delivery:
• Charged at £35.00 ex VAT per pallet.
• Orders must be received before 1:00pm.


FORS deliveries
• All deliveries requiring FORS certification will be charged at £100 ex VAT per delivery

Mastic Calculator

Mastic Sealant Calculator

Mapeheat Mesh is a self-adhesive, pre-wired, floor-heating mesh that can be adhered onto the subfloor during the layout
process. Its compatibility with all subfloor types and its low profile (4.5 mm) make it ideal for renovation projects.
Mapeheat Mesh can be installed under ceramic tile, porcelain tile, natural stone, laminate flooring, engineered wood
flooring and luxury vinyl flooring.
Mapeheat Mesh’s heating cable is attached to the self-adhesive mesh layer by three mesh bands. These bands help to
maintain consistent spacing of the cable while allowing easy removal of the cable during installation in hard-to-reach
areas. Thanks to its twin coil design, the PVC-coated heating cable emits no measurable electromagnetic fields. Plus, the
cable features a thin mechanical splice and a thin, flexible, 13.05m cold lead that is easy to embed in the subfloor and route
to the thermostat’s location.

Easy to install under tile, stone, laminate, engineered wood and luxury vinyl floors (90w only).
• Use with a self-leveller (recommended) or a polymer-modified adhesive.
• Can be configured on site to fit any room.
• Suitable for wet environments such as showers and steam rooms.
• Low-profile cold lead and splice joint.Easy to install under tile, stone, laminate, engineered wood and luxury vinyl floors (90w only).
• Use with a self-leveller (recommended) or a polymer-modified adhesive.
• Can be configured on site to fit any room.
• Suitable for wet environments such as showers and steam rooms.
• Low-profile cold lead and splice joint.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product comparison grid

A table comparing the facets of 4 products
Facet
Three tubes of Rockwool FirePro firestop sealant with red and white labeling on a white background. Two tubes are standing upright with nozzle attachments, and one tube is lying horizontally in front.
Acoustic Intumescent Sealant - 310ml
View details
ARBO Arbomeric MP20 Sealant 380ml
View details
ARBO Arbosil 1090S Silicone Sealant 380ml
View details
Arbo Arbosil XL 1099 Non-Staining Silicone 380ml
View details
By
ByRockwoolArboArboArbo
Price
Price
£4.56
inc VAT
£3.80 ex VAT
From £6.74
inc VAT
£5.62 ex VAT
From £8.64
inc VAT
£7.20 ex VAT
From £17.94
inc VAT
£14.95 ex VAT
Description
DescriptionGuidelines advise that the spread of fire inside a building can be minimised when provisions are made for elements of... Suitable For: Structural joints in heavy cladding, structural movement joints in floors and floor joints in heavily-trafficked areas. Area of... Suitable For: Adhesion to concrete, brickwork, metals and many other common construction substrates. Area of use: INT & EXT Application... Arbosil 1090 is a one part Low Modulus Neutral Cure Silicone Sealant which cures on exposure to moisture vapour to...
Uses
Uses
Advantages
• Up to 4 hours fire resistance
• Easily applied cartridge application
• Sealing joints up to 40mm
• Suitable with multiple substrates
• Suitable in joints with high movement capability
• Durable – Up to 25 years service
Arbomeric MP20 is recommended for many forms of construction, including structural joints in heavy cladding, structural movement joints in floors and floor joints in heavily-trafficked areas.
Recommended for use in many construction applications including curtain walling, both original and remedial perimeter sealing, structural joints in light cladding, profiled
metal roof sheets, joints in flat roof systems and guttering joints. NB: Not recommended for overpainting, use with laminated glass and use against natural stone
-

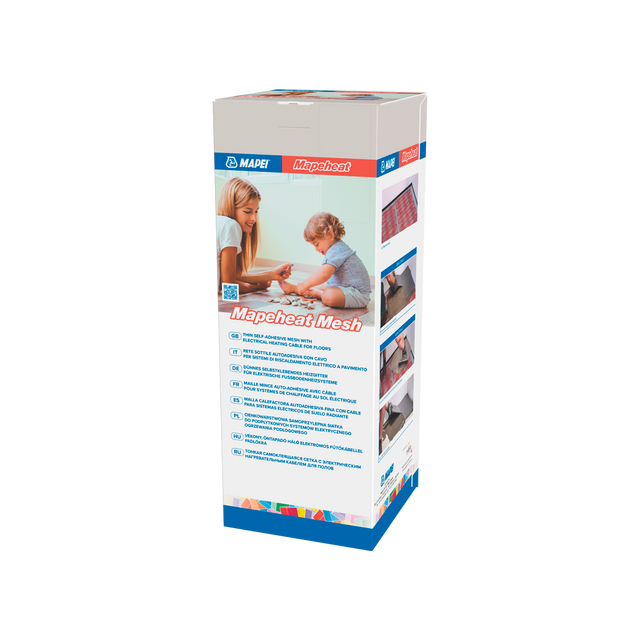

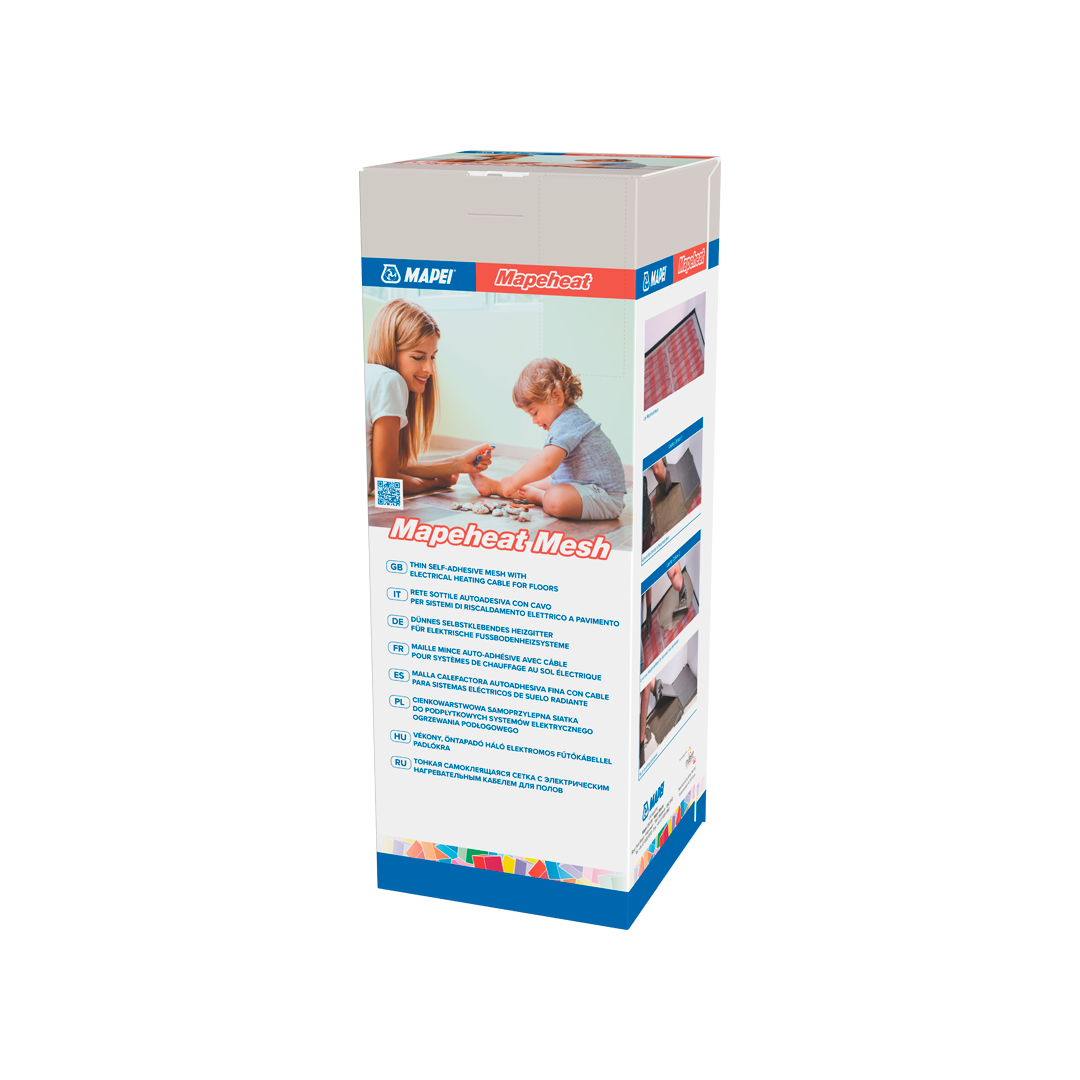

Mapeheat Mesh product box with an image of a woman and child, brand logos, and text details.
